lidarpy examples

Generate or Refresh the Figures

To regenerate one family of figures, use the command shown in the corresponding example. Each tab keeps the command and expected result together so visual changes are easy to review before publishing.

Synthetic quicklooks Retrieval validation Cloudnet ABLH Preprocessing checks

Synthetic Quicklooks

Elastic quicklook

Time-height view of the generated 532 nm elastic signal.

uv run python scripts/generate_docs_figures.py Synthetic elastic quicklook result

Raman quicklook

Raman channel quicklook generated from the synthetic 2D signal.

uv run python scripts/generate_docs_figures.py Synthetic Raman quicklook result

LPDR quicklook

LPDR derived from synthetic polarized signal components.

uv run python scripts/generate_docs_figures.py Synthetic LPDR quicklook result

Retrieval Validation

Synthetic truth comparison

Klett, iterative elastic, Raman extinction, Raman backscatter and LPDR checks against known synthetic truth.

uv run python scripts/generate_docs_figures.py Retrieval validation result

Cloudnet ABLH

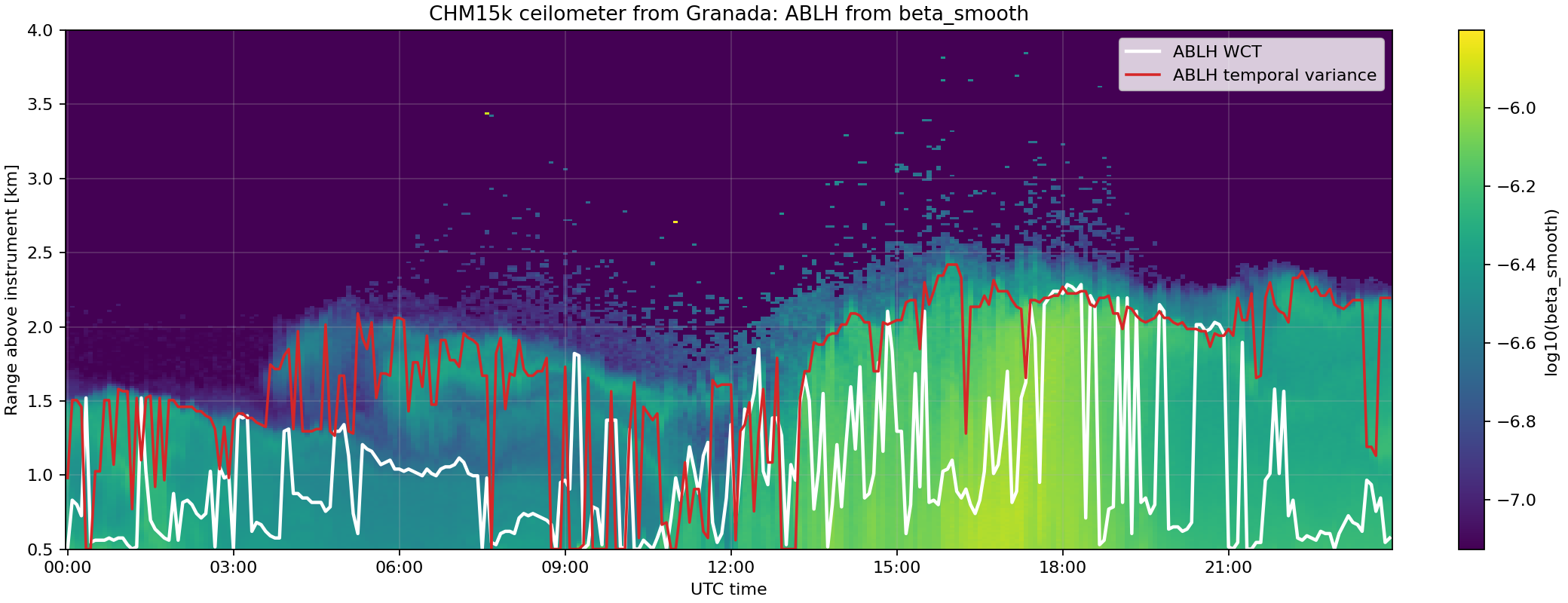

Granada CHM15k workbench

Cloudnet backscatter with WCT and temporal-variance ABLH products overlaid. The input file is downloaded from Cloudnet if the local cache is missing.

uv run python examples/cloudnet_chm15k_abl_workbench.py --output-dir artifacts/cloudnet_chm15k_abl_workbench Cloudnet CHM15k ABLH quicklook result

Preprocessing Checks

Focused ALHAMBRA preprocessing

Run the RAW-backed preprocessing contract checks before release when correction behavior changes.

uv run pytest tests/preprocessing/test_preprocessing_basic_alh.py -q

ABLH unit checks

Validate both layer detection methods against a synthetic 2D signal with known ABLH.

uv run pytest tests/retrieval/test_ablh_detection.py -q

Synthetic elastic and Raman signals

import numpy as np

from lidarpy.retrieval.synthetic.generator import synthetic_signals

ranges = np.arange(30.0, 6000.0, 30.0)
elastic, raman, params = synthetic_signals(
    ranges,
    wavelengths=(532, 607),
    ae=1.0,
    lr=50.0,
    apply_overlap=False,
    number_of_initial_nan_values=0,
)

The synthetic generators create compact elastic, Raman and depolarization cases that can be inspected visually before using them in retrieval tests.

Expected result: returned arrays share the requested range grid, and params contains the molecular and particle fields used as synthetic truth.

Preprocess a Converted ALHAMBRA NetCDF File

The preprocessing entry point expects a converted NetCDF product, not a RAW zip. Conversion is tested separately so preprocessing can focus on corrections and product contracts.

from pathlib import Path
import xarray as xr

from lidarpy.preprocessing import preprocess

dataset = preprocess(
    Path("path/to/RS_20230830_0315.nc"),
    channels=["1064fta"],
    crop_ranges=(0.0, 15000.0),
    apply_dc=False,
    apply_dt=False,
    apply_bg=True,
    apply_bz=True,
    apply_ov=False,
    gluing_products=False,
    apply_sm=False,
)

assert dataset.attrs["bg_corrected"] == "True"
assert dataset.attrs["bz_corrected"] == "True"
assert "signal_1064fta" in dataset
assert dataset["signal_1064fta"].dims == ("time", "range")
dataset.close()

Expected result: a dataset with time and range dimensions, channel metadata and correction flags in attributes. If the signal variable is missing, first check that the requested channel exists in the converted file.

Overlap Correction from a Profile File

Use an overlap file when a trusted per-channel profile already exists. The profile is selected by channel and interpolated to the dataset range grid when needed.

corrected = preprocess(
    "path/to/RS_20230830_0315.nc",
    channels=["1064fta"],
    crop_ranges=(0.0, 15000.0),
    apply_bg=True,
    apply_bz=True,
    apply_ov=True,
    overlap_path="path/to/overlap_1064fta.nc",
    apply_dc=False,
    apply_dt=False,
    apply_sm=False,
)

assert corrected.attrs["ov_corrected"] == "True"
assert corrected["overlap_corrected"].sel(channel="1064fta").item() == 1

Derived Overlap from Full-Field and Near-Field Channels

If no overlap file is provided, the ALHAMBRA configuration can derive the overlap profile from configured full-field and near-field channel pairs. This path is covered by tests for 1064fta and 1064nta.

corrected = preprocess(
    "path/to/RS_20230830_0315.nc",
    channels=["1064fta", "1064nta"],
    crop_ranges=(0.0, 15000.0),
    apply_bg=True,
    apply_bz=True,
    apply_ov=True,
    apply_dc=False,
    apply_dt=False,
    apply_sm=False,
)

assert "overlap_1064fta" in corrected
assert corrected["signal_1064fta"].attrs["overlap_applied"] == "1064fta"

Synthetic elastic quicklook example — Elastic synthetic quicklook for the 532 nm channel.

Synthetic Raman quicklook example — Raman synthetic quicklook for the 607 nm channel.

Synthetic LPDR quicklook example — Synthetic LPDR quicklook built from the depolarization signal generator.

ABLH Detection on a Normalized Product

ABLH methods operate on time, range arrays. The same function accepts lidarpy datasets with signal_* variables and Cloudnet ceilometer products with beta_smooth, beta or beta_raw.

import xarray as xr

from lidarpy.retrieval.ablh import detect_ablh

cloudnet = xr.open_dataset("path/to/cloudnet_chm15k.nc")

ablh = detect_ablh(
    cloudnet,
    input_kind="cloudnet",
    variable="beta_smooth",
    method="temporal_variance",
    min_range=500.0,
    max_range=4000.0,
    time_window_minutes=10.0,
    threshold=1e-5,
)

ablh.to_netcdf("cloudnet_temporal_variance_ablh.nc")

Expected result: the output NetCDF contains ablh and ablh_range in meters above the instrument. If the input has a Cloudnet height coordinate, ablh_height is also populated in meters above mean sea level.

Cloudnet CHM15k Workbench

The repository includes a local workbench that mirrors the synthetic ABLH tests on a Granada CHM15k Cloudnet product. If the default input is missing, the script downloads it from the Cloudnet API into the local ignored cache under tests/data/RAW/chm15k_25a1c14a/. It writes one NetCDF per method and a diagnostic quicklook generated from the original Cloudnet product plus the derived ABLH products.

$env:PYTHONPATH = "src"
$env:MPLBACKEND = "Agg"
python examples\cloudnet_chm15k_abl_workbench.py `
  --output-dir artifacts\cloudnet_chm15k_abl_workbench

Klett retrieval against synthetic signal

from lidarpy.retrieval.klett import klett_rcs
from lidarpy.utils.utils import signal_to_rcs

rcs = signal_to_rcs(elastic.values, ranges)
particle_beta = klett_rcs(
    rcs,
    ranges,
    params["molecular_beta"],
    reference=(3000.0, 3500.0),
    lr_part=50.0,
)

Forward iterative retrieval with boundary condition

from scipy.integrate import cumulative_trapezoid
from lidarpy.retrieval.klett import iterative_beta_forward

start_height = 600.0
start_idx = abs(ranges - start_height).argmin()
initial_aod = cumulative_trapezoid(
    params["particle_alpha"],
    ranges,
    initial=0.0,
)[start_idx]

particle_beta = iterative_beta_forward(
    rcs,
    calibration_factor=1e11,
    range_profile=ranges,
    params=params,
    lr_part=50.0,
    start_height=start_height,
    height_top=2400.0,
    initial_particle_optical_depth=float(initial_aod),
)

Retrieval validation with synthetic truth

Use the generated truth fields to verify whether the retrieval is recovering the expected aerosol structure and where boundary or reference assumptions limit the comparison.

SCC Access Client Without a Real Server

SCC end-to-end operation requires credentials and a real server, but the client contract can be validated offline. The test suite uses fake HTTP sessions to check URL construction, API parsing, streamed downloads and upload response parsing.

$env:PYTHONPATH = "src"
.\.venv\Scripts\python -m pytest tests\scc -q

Expected result: SCC tests pass without network. If they fail, fix the local client or package-data issue before investigating a real SCC integration failure.
